40 SERIES GRAPHICS

The INFINITY A5 Series takes your gaming and creative experiences to the next level with the powerful NVIDIA® GeForce RTX™ 40 Series graphics. Whether you're diving into the latest AAA titles, creating stunning visual content, or tackling demanding tasks, these laptops deliver unparalleled performance and realism.

RAPTOR LAKE PROCESSOR

At the heart of the INFINITY A5 14R6ARL7-899 lies the 14th Gen Intel® Core™ i7-14650HX processor, powered by Raptor Lake architecture and boasting a robust 55 Watt + TDP. This high-performance CPU is designed to handle intensive tasks with ease, delivering lightning-fast speeds and efficient multitasking capabilities.

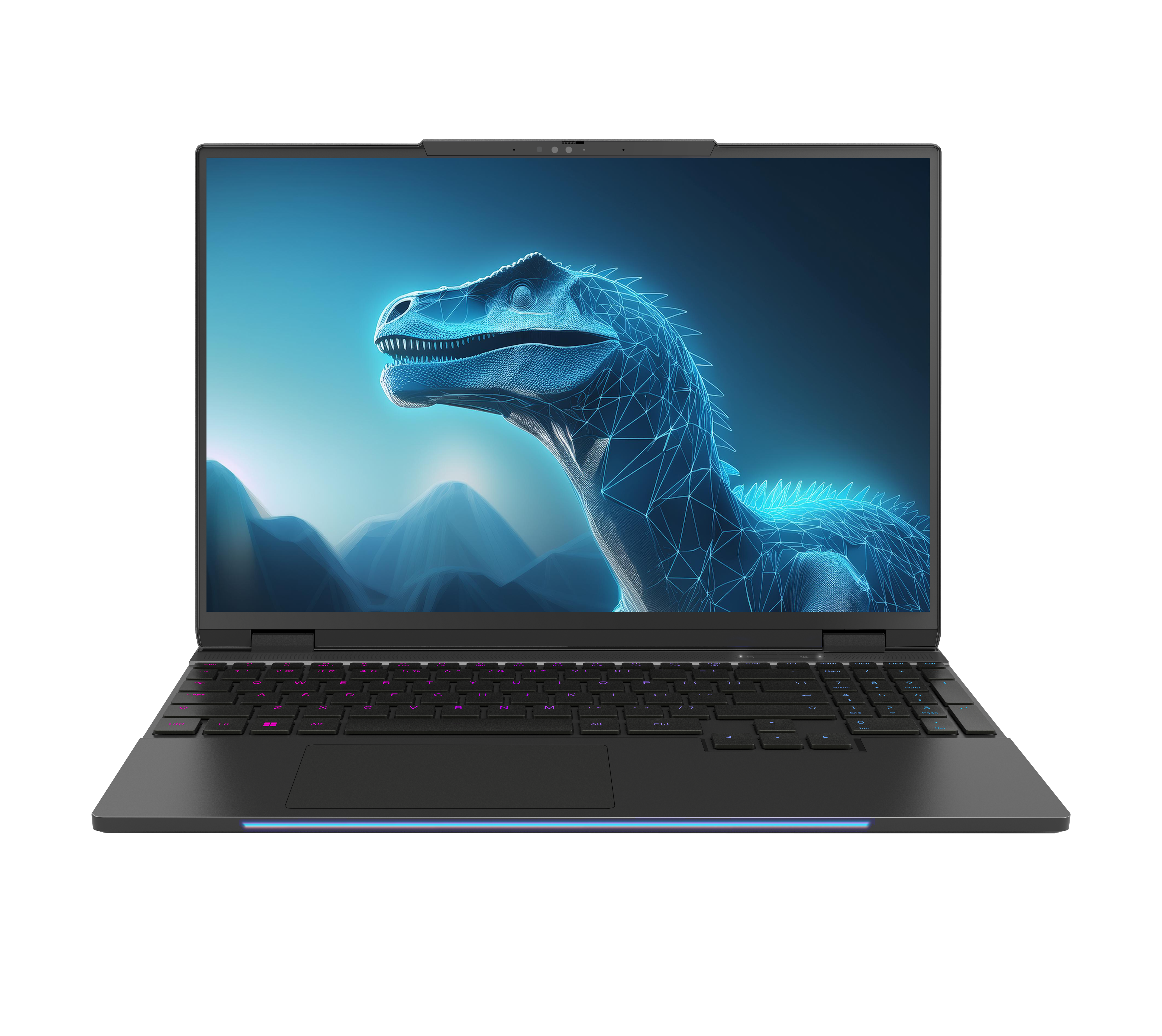

WQXGA-Display with 240 Hz

Feast your eyes on stunning visuals with the vibrant 15.3” WQXGA LED display. With a resolution of 2560 x 1600 and a 240Hz refresh rate, every frame comes to life with vivid detail and clarity. Whether you're gaming, streaming, or working on creative projects, the INFINITY A5 Series delivers an immersive viewing experience like no other.

*Only on select A5 models.

WQXGA

15.3" 2560 x 1600

240 Hz

Refresh Rate

LED

100% RGB / DCI-P3 Colour Space

A SERIES CAPABLE

TOP GAMING PERFORMANCE

NVIDIA’s GeForce RTX 40 series with up to 8GB of GDDR6 memory form the technological spearhead among laptop GPUs.

NEW RAPTOR LAKE CPU

i7 processor, featuring Raptor Lake architecture and a 55 Watt + TDP for lightning-fast performance.

GAMING CENTRE

All INFINITY laptops come provided with the latest gaming centre to control your RGB Lights and accessories

STORAGE & MEMORY

Never compromise on speed or storage capacity with the INFINITY A5 Series. Equipped with a 1TB M.2 NVMe PCIe Gen 4 SSD, 16GB DDR5 memory, expandable up to 64GB.

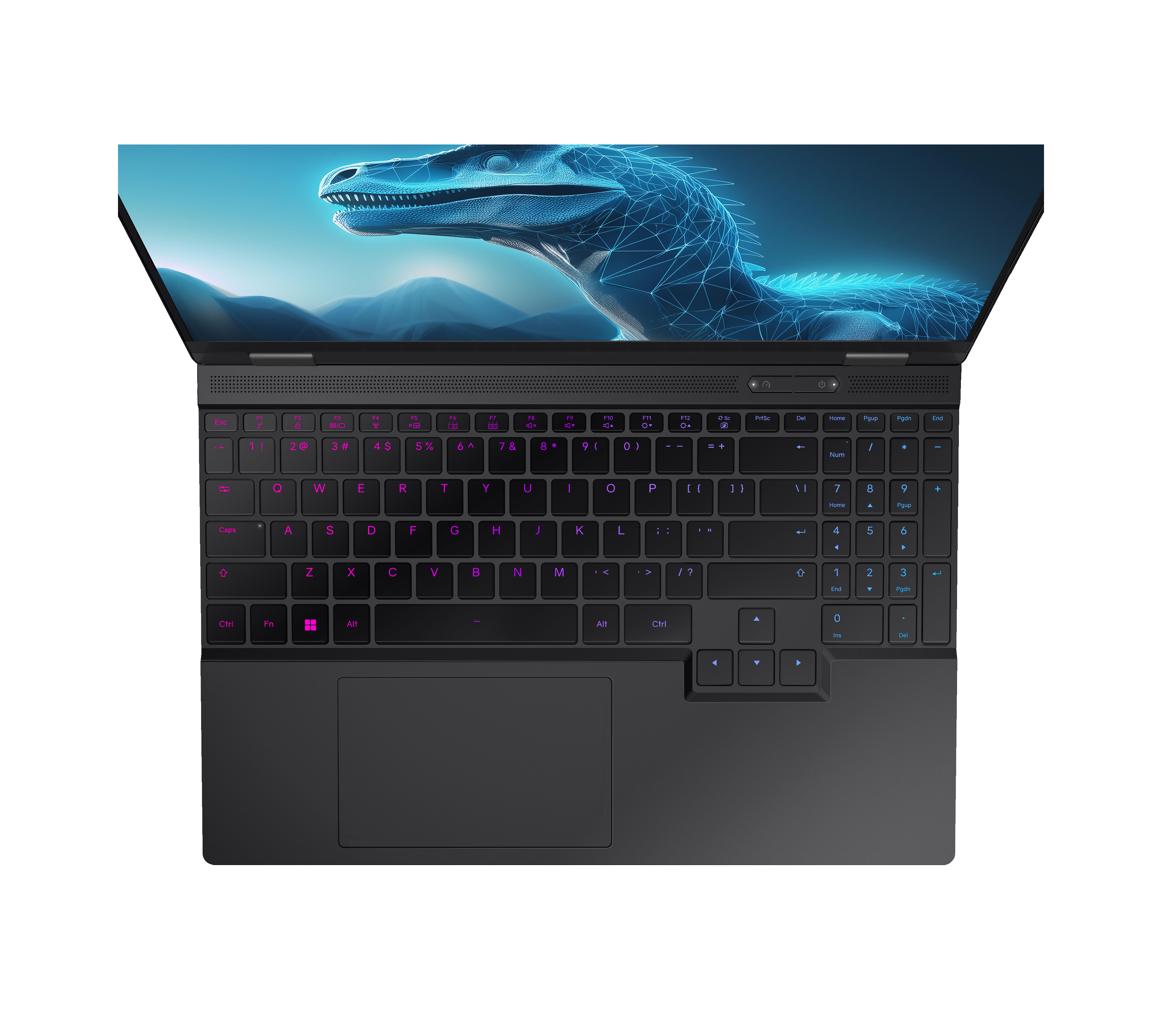

INDIVIDUAL KEY RGB KEYBOARD

INFINITY A5 Series’ Silent Membrane Keyboard featuring per-key RGB backlighting. Whether you’re typing up documents or engaging in intense gaming sessions, the keyboard’s silent membrane switches ensure minimal noise and maximum comfort.

TECHNICAL DETAILS

SPECIFICATIONS	A5-14R7A-899	A5-14R6A-899	A5-14R6ARL7-899
MODEL NAME	INFINITY A5-14R7A-899	INFINITY A5-14R6A-899	INFINITY A5-14R6ARL7-899
PROCESSOR	14th Gen Intel® Core™ i9-14900HX \| Raptor Lake \| 55 Watt + TDP	14th Gen Intel® Core™ i9-14900HX \| Raptor Lake \| 55 Watt + TDP	14th Gen Intel® Core™ i7-14650HX \| Raptor Lake \| 55 Watt + TDP
GRAPHICS	NVIDIA® GeForce RTX™ 4070 8GB GDDR6 \| dGPU 115 Watt TGP (+ 25 Watt Dynamic Boost)	NVIDIA® GeForce RTX™ 4060 8GB GDDR6 \| dGPU 115 Watt TGP (+ 25 Watt Dynamic Boost)	NVIDIA® GeForce RTX™ 4060 8GB GDDR6 \| dGPU 115 Watt TGP (+ 25 Watt Dynamic Boost)
DISPLAY	15.3” WQXGA 2560 x 1600 (16:10) LED 240Hz \| sRGB 100% \| IPS	15.3” WQXGA 2560 x 1600 (16:10) LED 240Hz \| sRGB 100% \| IPS	15.3” WQXGA 2560 x 1600 (16:10) LED 120Hz \| sRGB 100% \| IPS
STORAGE	1TB M.2 NVMe PCIe Gen 4 (Read/Write upto 5000/2500) SSD 1/2 Slot Free \| M.2 2280 SSD via PCI-e 4.0 x4 (supports RAID 0/1)	1TB M.2 NVMe PCIe Gen 4 (Read/Write upto 5000/2500) SSD 1/2 Slot Free \| M.2 2280 SSD via PCI-e 4.0 x4 (supports RAID 0/1)	1TB M.2 NVMe PCIe Gen 4 (Read/Write upto 5000/2500) SSD 1/2 Slot Free \| M.2 2280 SSD via PCI-e 4.0 x4 (supports RAID 0/1)
MEMORY	16GB DDR5 4800MHz (16GBx1) \| 1/2 Slot Free \| Max 64GB	16GB DDR5 4800MHz (16GBx1) \| 1/2 Slot Free \| Max 64GB	16GB DDR5 4800MHz (16GBx1) \| 1/2 Slot Free \| Max 64GB
KEYBOARD	Silent Membrane Keyboard with per-key RGB Backlight	Silent Membrane Keyboard with per-key RGB Backlight	Silent Membrane Keyboard with per-key RGB Backlight
CONNECTIVITY	Rear side: - DC-in - Gigabyte LAN Port - HDMI 2.1 - Thunderbolt™ 4 / USB Type-C (Gen3.2 Gen 2) with 100 Watt PD charging (Display Port Alternate) - Kensington Lock Right side: - USB Type-A 3.2 Gen1 5Gbps x 2 - Full-Size SD Card Reader Left side: - 3.5mm UAJ Jack - USB Type-A 3.2 Gen 1 5Gbps - USB Type-C 3.2 Gen 1 5Gbps	Rear side: - DC-in - Gigabyte LAN Port - HDMI 2.1 - Thunderbolt™ 4 / USB Type-C (Gen3.2 Gen 2) with 100 Watt PD charging (Display Port Alternate) - Kensington Lock Right side: - USB Type-A 3.2 Gen1 5Gbps x 2 - Full-Size SD Card Reader Left side: - 3.5mm UAJ Jack - USB Type-A 3.2 Gen 1 5Gbps - USB Type-C 3.2 Gen 1 5Gbps	Rear side: - DC-in - Gigabyte LAN Port - HDMI 2.1 - Thunderbolt™ 4 / USB Type-C (Gen3.2 Gen 2) with 100 Watt PD charging (Display Port Alternate) - Kensington Lock Right side: - USB Type-A 3.2 Gen1 5Gbps x 2 - Full-Size SD Card Reader Left side: - 3.5mm UAJ Jack - USB Type-A 3.2 Gen 1 5Gbps - USB Type-C 3.2 Gen 1 5Gbps
COMMUNICATION	Gigabyte LAN Intel Wi-Fi 6e AX211 802.11 a/b/g/n/ax + Bluetooth 5.3	Gigabyte LAN Intel Wi-Fi 6e AX211 802.11 a/b/g/n/ax + Bluetooth 5.3	Gigabyte LAN Intel Wi-Fi 6e AX211 802.11 a/b/g/n/ax + Bluetooth 5.3
AUDIO	Nahimic by SteelSeries Build-in 2 speakers \| 2W each Digital Microphone support	Nahimic by SteelSeries Build-in 2 speakers \| 2W each Digital Microphone support	Nahimic by SteelSeries Build-in 2 speakers \| 2W each Digital Microphone support
OPERATING SYSTEM	Windows 11 Home	Windows 11 Home	Windows 11 Home
BATTERY	60 Wh lithium polymer battery (screwed internally)	60 Wh lithium polymer battery (screwed internally)	60 Wh lithium polymer battery (screwed internally)
AC ADAPTER	280W Adapter	240W Adapter	240W Adapter
DIMENSIONS	342 x 245 x 21.9 mm 2.1 KG	342 x 245 x 21.9 mm 2.1 KG	342 x 245 x 21.9 mm 2.1 KG
WEBCAM	Windows Hello 4.0 Webcam FHD + IR Dual Sensor	Windows Hello 4.0 Webcam FHD + IR Dual Sensor	Windows Hello 4.0 Webcam FHD + IR Dual Sensor
WARRANTY	2 Year Manufacturer Warranty (6 Months Internal Battery)	2 Year Manufacturer Warranty (6 Months Internal Battery)	2 Year Manufacturer Warranty (6 Months Internal Battery)
